Screen Printing Mesh BusinessSurface Treatments
Enhancement of Adhesion and Wettability
Characteristics of SS-30
- 1Enhancement of adhesion
- SS-30 treatment enhances the adhesion to emulsions significantly. In particular, it is effective in printing halftone dots and fine lines.
- 2Enhancement of wettability
- As the wettability increases after SS-30 treatment, ink passes through a printing plate smoothly to enhance the reproducibility of printing.
- 3Enhancement of resolution
- The resolution is enhanced after SS-30 treatment allowing exposure time to be reduced by 30% or more. In addition, the latitude of appropriate exposure time also becomes wider.
- 4Environment-friendly treatment
- SS-30 treatment has minimal impact to the environment as it does not use any chemicals or resin during treatment.
SEM Photos of Plates With SS-30

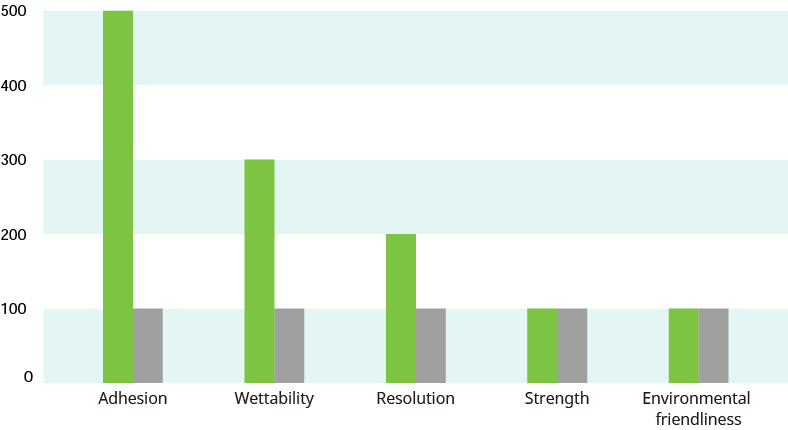

Performance Comparison - Before and After Application of SS-30
- Before treatment
Conceptual diagram with performance before treatment valued at 100.
Comparison of Adhesion to Emulsion
This graph shows the number of dots peeled in a tape peeling test.
The smaller the value, the higher the adhesion.
Test Method
| Test pattern | Dot size | 0.2 mm square | |
|---|---|---|---|
| Emulsion | Exposed diazo resin-based emulsion for appropriate exposure time | ||
| Tape | Scotch mending tape #810 | ||
| Number of peeling | Once | ||
| Peeling angle | 90◦ vertically | ||
Photograph of printing（slashes）
130/330-30
Test Method
| Number of printing shots | 10 th Print | ||
|---|---|---|---|
| Substrate | PET film | ||
| Positive size of slash | Length | 1.5mm | |
| Width | 0.15mm | ||
| Angle | 60° | ||
Anti-Static
Characteristics of Super Fine
- 1Strong antistatic effect
- Strong antistatic effect is achieved after Super Fine treatment, adhesion of dirt and dust, as well as the scattering of ink during printing, can be prevented to enhance workability significantly.
- 2Enhancement of adhesion
- The Super Fine treatment enhances the adhesion to emulsions significantly. In particular, it is effective in printing halftone dots and fine lines.
- 3Enhancement of wettability
- Wettability increases after Super Fine treatment and inks passes through a printing plate smoothly to enhance the reproducibility of printing.
- 4Enhancement of resolution
- Resolution is enhanced as less halation occurs and strong adhesion to emulsion is achieved after Super Fine treatment. It enables significant reduction of exposure time (in the case of dyed items), resulting in wider latitude of appropriate exposure time.
- 5Environment-friendly treatment
- Anti-static treatment has minimal impact to the environment as it does not use any chemicals or resin during treatment.
Performance Comparison - Before and After Application of Super Fine
- Before treatment
Conceptual diagram with performance before treatment valued at 100.
Frictional Electrostatic Voltage Comparison Graph
This graph shows the potentials applied to a screen due to friction. The smaller the value, the higher the antistatic effect.
120/300-34
Test Method
| Method | JIS L1094-1988 (5.2B method) | ||
|---|---|---|---|
| Testing machine | Kyoto University Institute for Chemical Research type Rotary static tester |
||
| Frictioned fabric | Cotton cloth | ||
| Rotation frequency | 400 times/minute | ||
| Load | 4,903N | ||
| Friction time | 60 seconds | ||
| Temperature and humidity | 20ºC, 40% RH |
Half Value Period Comparison Graph
This graph shows a period of time (number of seconds) that was required for the static electricity charge to come down by half.
The smaller the value is, the higher the discharge performance is.
120/300-34
Test Method
| Method | JIS L 1094-1988 (5.1A method) | ||
|---|---|---|---|
| Testing machine | Static honest meter | ||
| Applied voltage | 10KV | ||
| Rotation frequency | 1,720 times/minute | ||
| Application time | 30 seconds | ||
| Temperature and humidity | 20ºC, 40% RH |
